B-2231-UK-11-2013-REV. C
Dim.
A B C D1 D2 E F G øH øI nxøJ nxøK L
M øZ ISO Weight [kg]
free stem
DN40 113 67.0 13.5 82.0 112.0 11 65 10 50 - 4 x 7 -
33 29.6 44.3 F05
2.1
DN50 126 76.0 13.5 93.0 122.4 11 65 10 50 - 4 x 7 -
43 34.6 55.2 F05
3.2
DN65 134 82.0 13.5 107.0 136.5 11 65 10 50 - 4 x 7 -
46 47.7 66.3 F05
4.1
DN80 157 96.0 13.5 116.0 180.0 11 65 10 50 - 4 x 7 -
46 69.1 83.0 F05
5.5
DN100* 167 113.5 13.5 146.0 198.3 11 65 10 50 - 4 x 7 -
52 87.2 101.5 F05
7.6
DN100 167 113.5 17.5 146.0 198.3 14 90 13 70 50 4 x 7 4 x 9 52 87.2 101.5 F05/F07
7.6
DN125 180 129.0 17.5 175.0 226.0 14 90 13 70 - 4 x 9 -
56 116.5 129.3 F07
9.3
DN150 203 143.0 17.5 202.0 261.7 17 90 13 70 - 4 x 9 -
56 144.0 154.5 F07
12.6
DN200 228 172.0 24.5 253.0 314.5 22 125 15 102 - 4 x 11 -
60 191.1 200.3 F10
18.4
DN250 266 213.0 24.5 307.0 380.0 22 125 15 102 - 4 x 11 -
68 240.6 250.0 F10
30.4
DN300 291 242.0 27.0 360.0 428.4 27 150 15 125 102 4 x 11 4 x 14 78 290.7 301.0 F10/F12
38.1
Dim.
A B C D1 D2 E F G øH øI nxøJ nxøK L M øZ ISO Weight [kg]
free stem
DN350 332 278.0 28.5 393.0 493.0 27 179 19 140 125 4 x 14 4 x 18 78 329.6 338.7 F12/F14
51.9
DN400 363 321.5 28.5 456.0 555.1 27 179 20 140 125 4 x 14 4 x 18 102 376.3 389.9 F12/F14
112.0
DN450 397 353.0 39.0 514.0 636.8 36 214 25 165 140 4 x 18 4 x 22 114 425.6 440.6 F14/F16
168.0
DN500 425 400.0 49.0 565.4 706.0 46 214 25 165 140 4 x 18 4 x 22 127 474.7 491.4 F14/F16
216.0
DN600 498 460.0 51.5 668.9 830.5 46 304 31 256 165 8 x 18 4 x 22 154 573.0 593.3 F16/F25
280.0

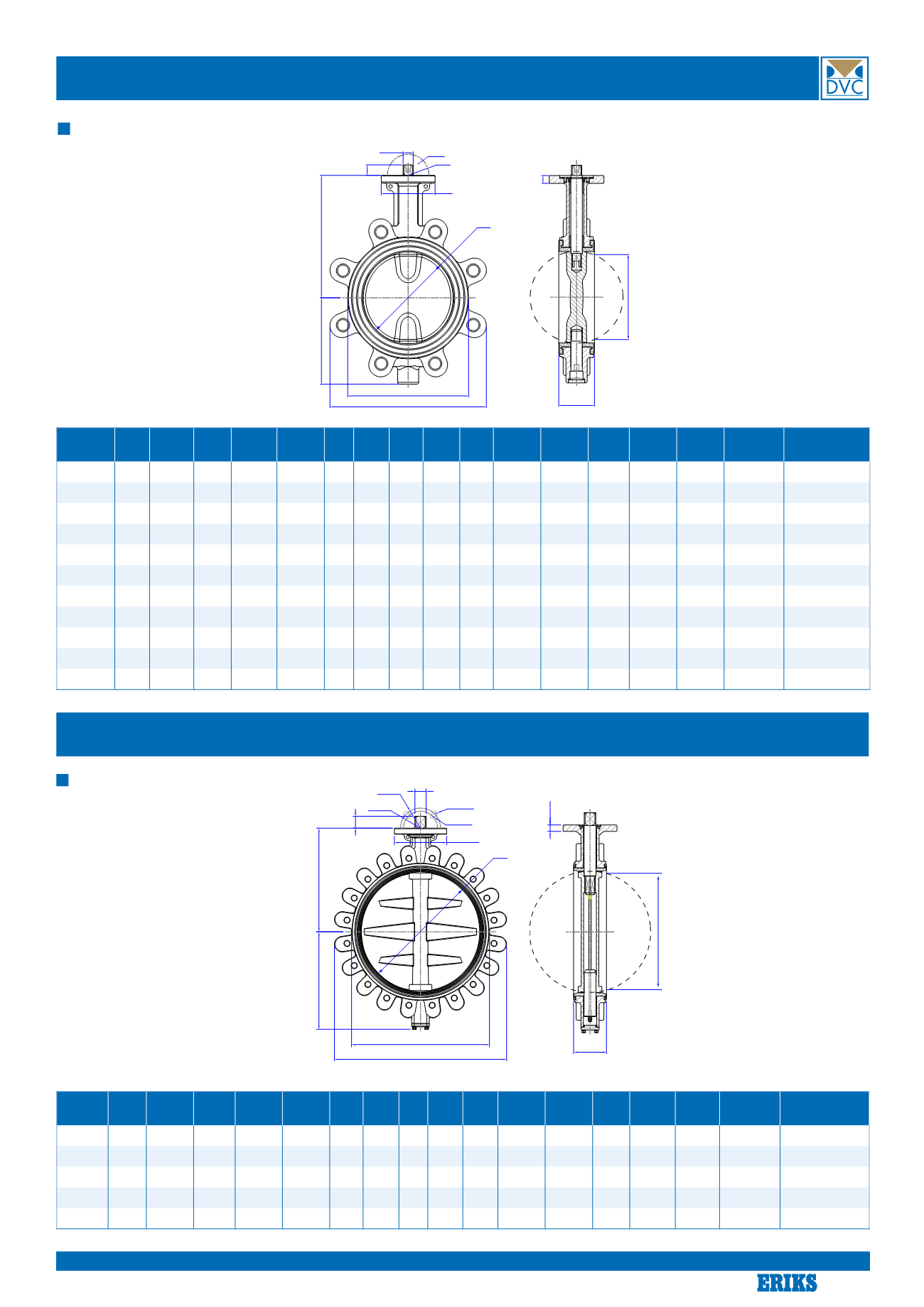

Dimensions (mm)
Dimensions (mm)
Type 2241 Lug - DN40 to DN300
Type 2241 Lug - DN350 to DN600
A
M
F
øH
øZ
nxøJ
C
E
B
øD1
øD2
L
G
A
F
nxøJ
nxøK
C
øH
øI
øZ
E
B
øD1
øD2
L
G
M
*Optional choise - ON REQUEST
