Dim.
A B C D E F G øH øI nxøJ nxøK L M øZ ISO Weight [kg]
free stem
DN40 113 63.0 13.5 82.4 11 65 10 50
-
4 x 7 -
33 29.6 44.3 F05
1.5
DN50 126 72.0 13.5 99.0 11 65 10 50
-
4 x 7 -
43 34.6 55.2 F05
2.0
DN65 134 78.0 13.5 113.4 11 65 10 50
-
4 x 7 -
46 47.7 66.3 F05
2.6
DN80 157 91.5 13.5 128.7 11 65 10 50
-
4 x 7 -
46 69.1 83.0 F05
3.2
DN100* 167 108.5 13.5 156.7 11 65 10 50
-
4 x 7 -
52 87.2 101.5 F05
4.9
DN100 167 108.5 17.5 156.7 14 90 13 70 50 4 x 7 4 x 9 52 87.2 101.5 F05/F07
4.9
DN125 180 124.0 17.5 190.3 14 90 13 70
-
4 x 9 -
56 116.5 129.3 F07
6.4
DN150 203 137.0 18.5 213.0 17 90 13 70
-
4 x 9 -
56 144.0 154.5 F07
7.7
DN200 228 167.0 24.5 265.8 22 125 15 102 -
4 x 11 -
60 191.1 200.3 F10
12.2
DN250 266 207.0 24.5 324.2 22 125 15 102 -
4 x 11 -
68 240.6 250.0 F10
18.5
DN300 291 236.0 27.0 376.8 27 150 15 125 102 4 x 11 4 x 14 78 290.7 301.0 F10/F12
26.0
Dim.
A B C D E F G øH øI nxøJ nxøK L
M øZ ISO Weight [kg]
free stem
DN350 332 258.0 30 411.7 27 175 19 140 125 4 x 14 4 x 18 78 329.6 338.7 F12/F14
41.0
DN400 363 301.5 30 471.2 27 175 20 140 125 4 x 14 4 x 18 102 376.3 389.9 F12/F14
58.0
DN450 397 333.0 39 528.0 36 210 25 165 140 4 x 18 4 x 22 114 425.6 440.6 F14/F16
82.0
DN500 425 378.0 49 580.4 46 210 25 165 140 4 x 18 4 x 22 127 474.7 491.4 F14/F16
101.0
DN600 498 438.0 49 687.9 46 300 30 254 165 8 x 18 4 x 22 154 573.0 593.3 F16/F25
173.0
Dimensions (mm)
Dimensions (mm)

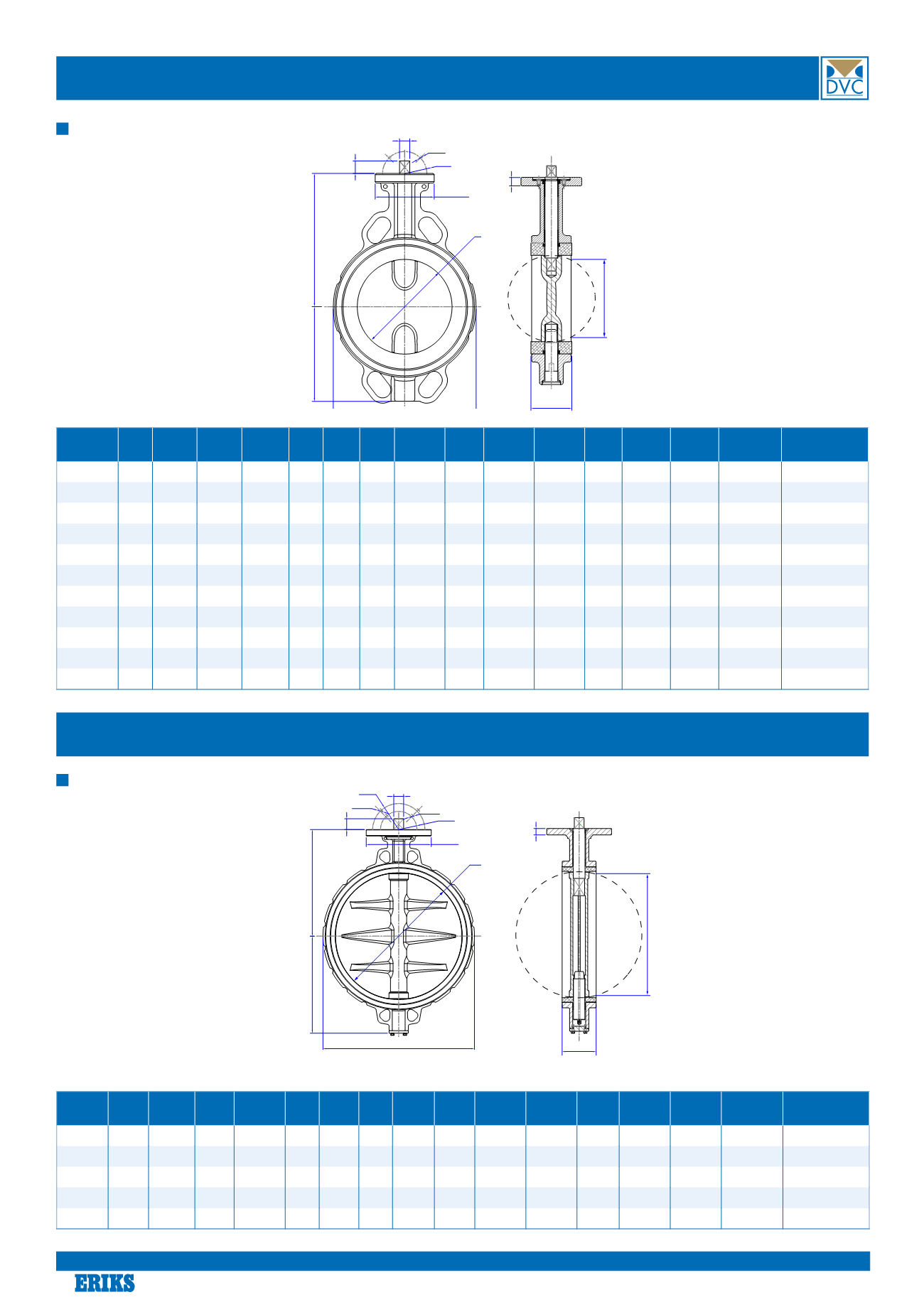

Type 2231 Wafer - DN40 to DN300
Type 2231 Wafer - DN350 to DN600
L
G
A
M
F
øH
øZ
C
E
B
øD
nxøJ
L
G
A
M
F
øI
øZ
øH
C
E
B
øD
nxøJ
nxøK
nxøk
øI
*Optional choise - ON REQUEST
