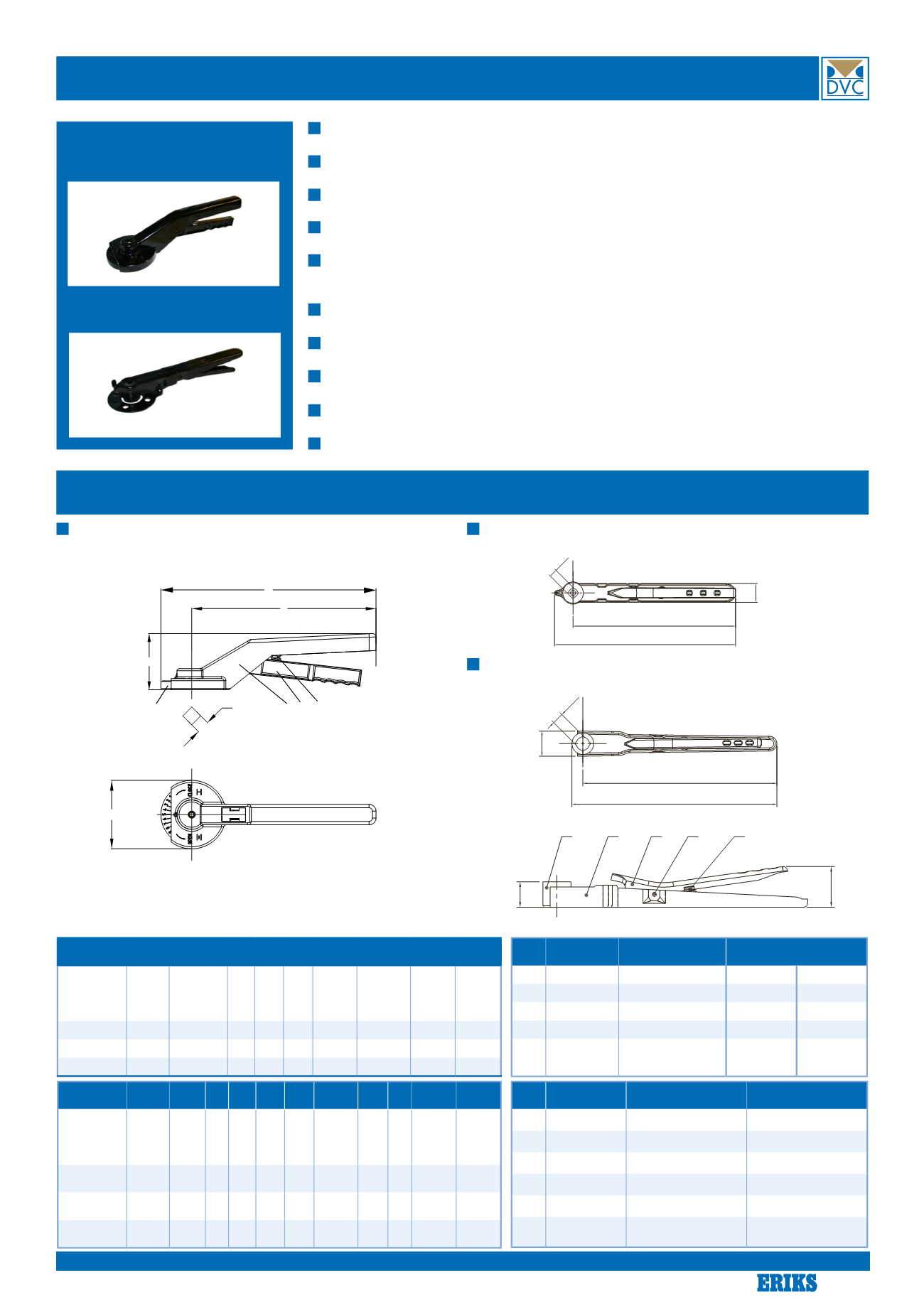

B-2231-UK-11-2013-REV. C
Hand lever
For DN40 to DN200 Alu.
For DN40 to DN200 Steel/SS
Steel or stainless steel hand lever
Lever, locker and plate are made from steel or stainless steel.
Convenient installation and usage.
Excellent surface design and comfortable operating.
Standard steel has e-coating surface.
For DN40 to DN200 Aluminium
For DN40 to DN150 Steel or Stainless steel
Construction - Hand lever
Dimensions (mm) and materials
Type (S/SS) Valve
dim.
Size A B C D ExE
F H Bolts Weight
(Kg)
2952009050 /
2952029050
DN40
DN50
DN65
DN80
DN100
F05 30 220 250 26 11 x 11 29 70 M6 x 20 0.25
2952009100 /
2952029100 DN125 F07 35 260 290 28 14 x 14 31 52 M8 x 25 0.50
2952009150 /
2952029150 DN150 F07 35 260 290 28 17 x 17 31 52 M8 x 25 0.50
2952009200 /
2952029200 DN200 F10 42 370 391 48 22 x 22 38 75 M10 x
30
1.00
ExE
B
C
D
H
F
1
2
3 4
5
øA
ExE
B
C
D
No.
Part Name
Aluminium
Surface
standard option
1 Column
Diecast aluminum Powder epoxy Anodized 40µ
2 Holding Handle Diecast aluminum Powder epoxy Anodized 40µ
3 Locking Handle Diecast aluminum Powder epoxy Anodized 40µ
4 Spring
Carbon Steel Q235
Steel Q235
SS316
5 Bolt / nut
SS304
SS304
SS316
øA
Aluminium hand lever
Convenient installation and usage.
Excellent surface design and comfortable operating.
Position can be locked by fixing one bolt and nut in the lever hole.
Standard anodized surface with powder epoxy coating.
ExE
B
D
C
F
1
2 3 4
For DN200 Steel or Stainless steel
Type Alu Valve
dim.
Size
B C D ExE
F
Bolts Weight
(Kg)
2953100050
DN40
DN50
DN65
DN80
DN100
F05
195 228 73 11 x 11
60
M6 x 20 0.35
2953100125
DN125
F07
269 317 101 14 x 14
80
M8 x 25 0.60
2953100150
DN150
F07
269 317 101 17 x 17
80
M8 x 25 0.60
2953100200
DN200
F10
330 405 125 22 x 22
82
M10 x 30
0.80
No.
Part Name
Steel (S)
Stainless Steel (SS)
1 Column
Carbon Steel Q235
Stainless Steel AISI 304
2 Holding Handle Carbon Steel Q235
Stainless Steel AISI 304
3 Locking Handle Carbon Steel Q235
Stainless Steel AISI 304
4 Hingle Pin
Stainless Steel AISI 304
Stainless Steel AISI 304
5 Spring
Carbon Steel Q235
Stainless Steel AISI 304
Bolt / nut / shim Stainless Steel AISI 304
Stainless Steel AISI 304
Know-how makes the difference
