B-2231-UK-11-2013-REV. C
Ductile iron housing
Steel input shaft
Steel worm gear
Ductile iron output gear segment
Dustproof enclosure
Units provided with hand wheel
Adjustable travel stops are standard and factory set
AISI 304 standard bolts and nuts
Dimensions are valid for type 2231 and 2241
Type
Valve
dim.
Ratio
Output
torque
(Nm)
Input
torque
(Nm)
Hand wheel
ø (mm)
Turns from
open to
closed
Stem
hole
size
Bolt size
n-m
Weight
(Kg)
5595-40-27 DN 350 42:1
994
88
300
10
27 x 27 4 - M16 x 40
17.1
5595-50-27 DN 400 60:1
1789
110
300
15
27 x 27 4 - M16 x 40
32.0
5595-60-36 DN 450 68:1
3381
165
400
17
36 x 36 4 - M16 x 45
32.0
5595-60-46 DN 500 68:1
3381
165
400
17
46 x 46 4 - M20 x 45
32.0
5595-70-46 DN 600 88:1
4474
169
500
22
46 x 46 8 - M16 x 55
46.1
Type
Mounting
flange D1 d1 ø ø1 B C D H H1 H2 h E F M N
5595-40
F14
140 65 20 6 168 147 150 81 73 42 7.5 136 157 52 67
5595-50
F14
140 90 20 6 185 192 198 98 80 50 5.2 184 217 86 90
5595-60
F16 / F14 165 115 30 8 250 235 252 105 92 50 9.5 248 292 114 123
5595-70
F25 / F16 254 120 30 8 275 290 315 127 113 50 9.5 313 326 117 153

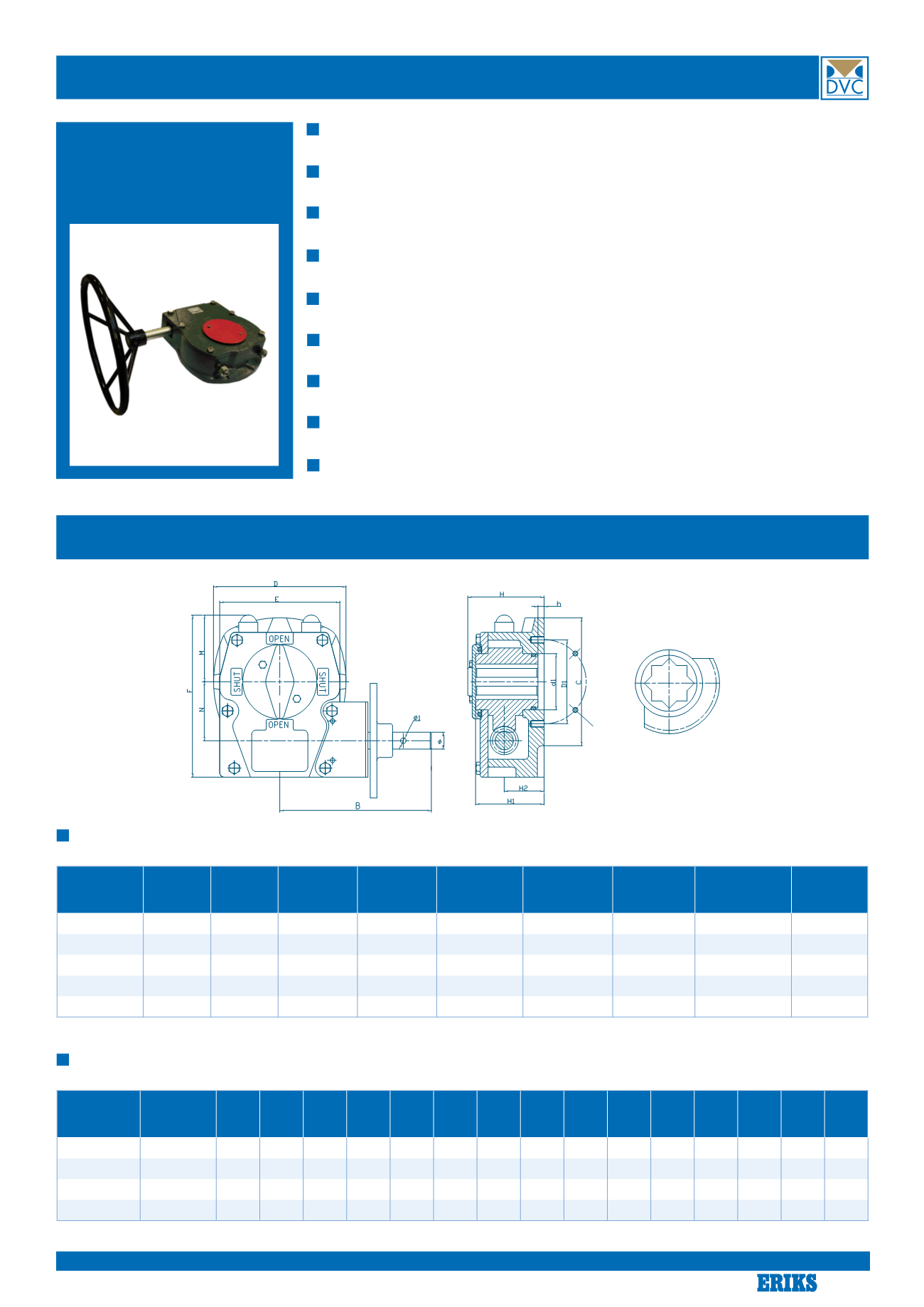

General Information
Dimensions
Gearboxes
Type 5595
(DN350 - DN600)
Construction - Gear Boxes - DN 350 to DN 600
General Parameters
n-m
