Extended life span
This butterfly valve has a unique wave line rubber seat and a special disc
shape, enhancing the life span of the valve and sealing.
Reduced torque
Due to the unique wave line rubber seat and disc shape the butterfly valve
has a low torque.
One of a kind
It is the only butterfly valve in the world constructed with a bushing inside the
disc - resulting in lower torque, lower friction, 100% tight shut-off function
and a very long service.
Seat construction
On the Wafer type the seat is vulcanized onto a phenol back-up ring. On the
Lug type and the double flanged type the seat is vulcanized onto the body.

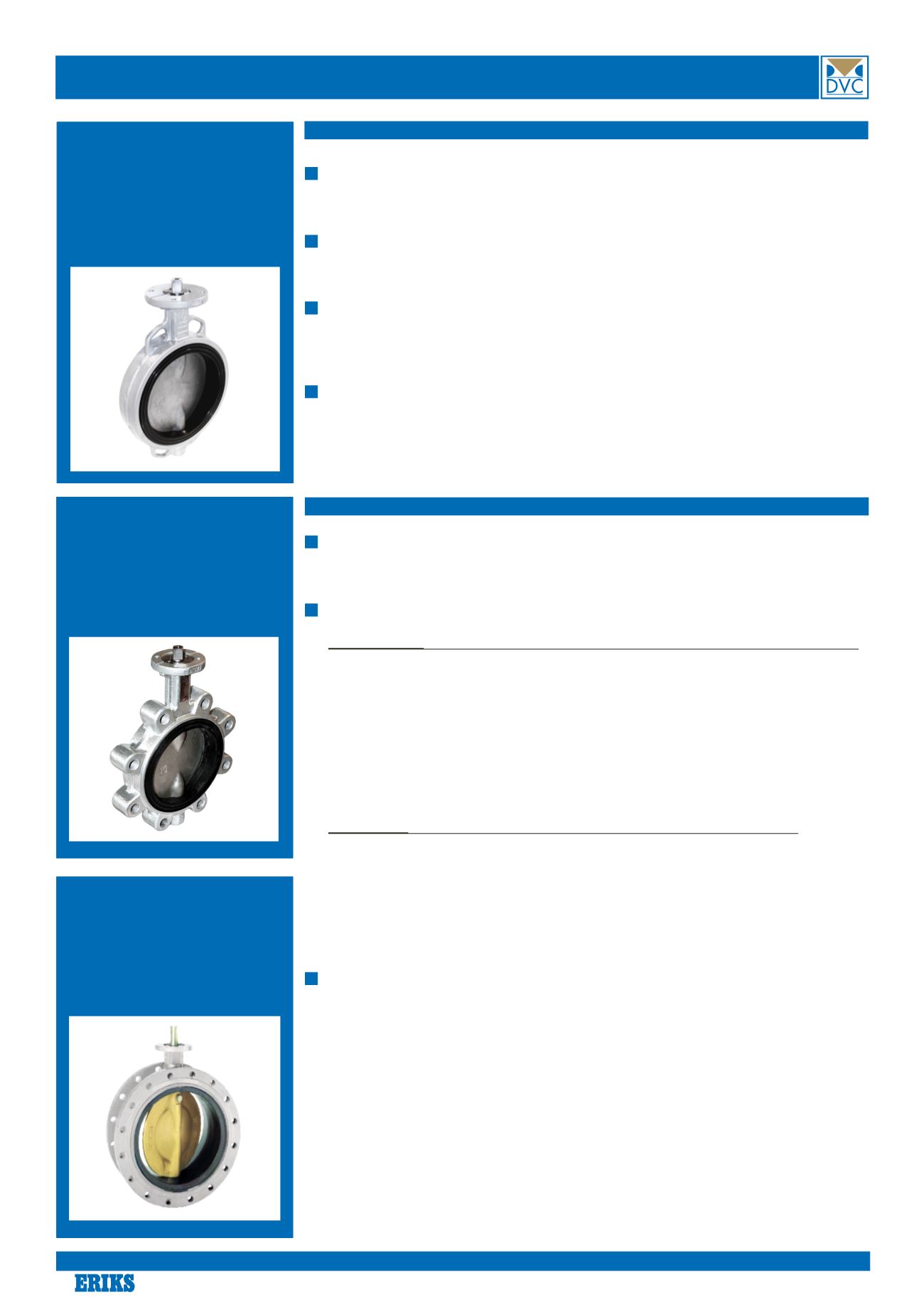

Soft Seated Butterfly Valve
Type 2241 Lug
Dimensions
DN40 - DN300
DN350 - DN600
Soft Seated Butterfly Valve
Type 2400 Double flanged
Dimensions
DN50 - DN2000
Product Range and Benefits
DN40 to DN300
DN40 to DN600
Perfect turning and centric positioning
The butterfly valve has a PTFE/graphite bushing, which ensures perfect
turning and centric positioning of the stem.
Trouble-free mounting
Wafer-valve
multi-standard alignment holes suitable for different flanges:
DN40 - DN300 wafer type:
EN1092 PN10, PN16
ANSI150
BS10 TABLE D, TABLE E, JIS 10K, 16K.
DN350 - DN600 wafer type:
EN1092 PN10, PN16
ANSI150
BS10 TABLE D.
LUG-valve
alignment holes suitable for specific mounting flanges:
DN40 - DN150 lug type:
EN1092 PN10 or PN16 or ANSI150.
DN200 - DN600 lug type:
EN1092 PN10 or ANSI150.
Mounting bolts lug: PN = Metric and ANSI = UNC
PN16 rated
The Wafer type and lug type butterfly valves can easily operate up to PN16
from DN40 to DN150 and up to PN10 from DN200 to DN600.
Soft Seated Butterfly Valve
Type 2231 Wafer
Dimensions
DN40 - DN300
DN350 - DN600
