Description
Material
Standard Coating
1 Body
Ductile iron - ASTM A536 Gr 65-45-12 (GGG40)
Carbon steel - ASTM A216 WCB (GSC25N)
Stainless steel - ASTM A351 CF8M
3 layer coating EPOXY/EPOXY/PUR 160µ
RAL 9006
2 Disc
Low alloy stainless steel - ASTM A276 (SS201)
Ductile iron - ASTM A536 Gr 65-45-12 (GGG40)
Ductile iron
Stainless steel - ASTM A351 CF8M
Alu-bronze - ASTM B148 C95800
Duplex
Hastelloy
Rilsan
F46 (FEP)
3 Seat
NBR
EPDM
FPM
4 Stem
Stainless steel - SS420 for PN16
Stainless Steel - SS431 for PN25
5 V-type ring
Same material as seat
6 Bushing
Bronze
7 Flange
Hard plastic
8 Screw
Steel
Galvanized

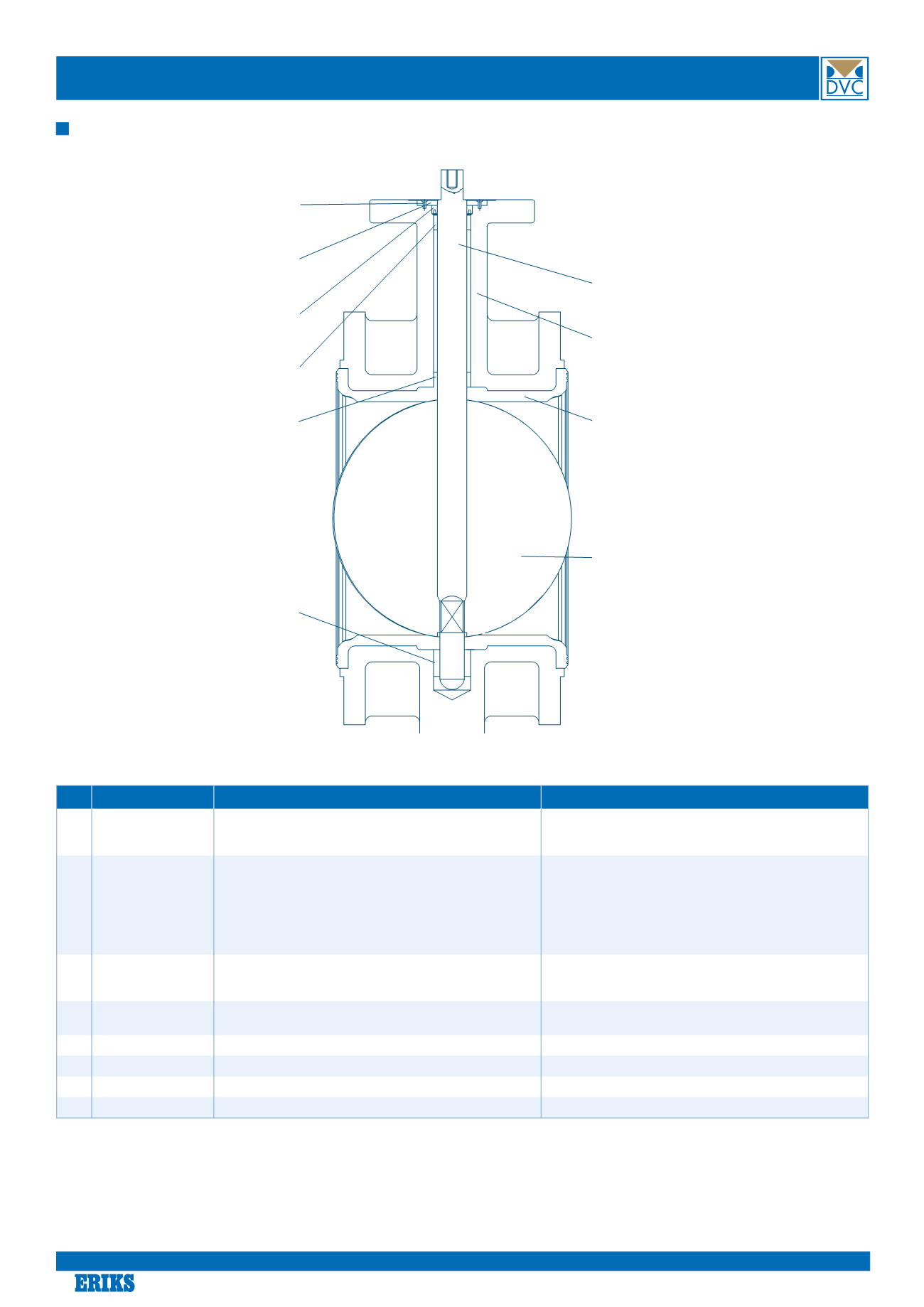

Structure and material
8
7
5
6
6
6
4
1
3
2
Type 2400 - Double Flanged - DN50 to DN300
