Type
Max.
output
torque
Operating
time (sec.)
60/50 Hz
Max.
bore
size
Rated current (A) 60 Hz
Duty
cycle IEC
34-1
Number
of handle
turn
Weight
1 Phase
3 Phase
Kg.m 90°
mm 110V
230V
400V
440V S2 (min)
N
Kg
008
8
13 / 16
Ø 20 0.96/0.97 0.47/0.46
N/A
N/A
30
10
7.4
010
10
16 / 20
Ø 20 0.96/0.97 0.47/0.46
N/A
N/A
30
10
7.4
015
15
21 / 25
Ø 22 1.51/1.62 0.72/0.84 0.35/0.27 0.55/0.34
30
11
16.6
020
20
21 / 25
Ø 22 1.51/1.62 0.72/0.84 0.35/0.27 0.55/0.34
30
11
16.6
030
30
26 / 31
Ø 35 1.37/1.67 0.68/0.81 0.33/0.27 0.43/0.30
30
13.5
22
050
50
26 / 31
Ø 35 4.27/3.56 1.37/1.27 0.51/0.42 0.66/0.46
30
13.5
23
060
60
26 / 31
Ø 35 4.27/3.56 1.37/1.27 0.51/0.42 0.66/0.46
30
13.5
23
080
80
31 / 37
Ø 45 3.47/4.45 1.81/2.32 0.83/0.61 1.10/0.73
30
16.5
29
120
120
31 / 37
Ø 45 3.47/4.45 1.81/2.32 0.83/0.61 1.10/0.73
30
16.5
29
200
200
93 / 112
Ø 65 3.47/4.45 1.81/2.32 0.83/0.61 1.10/0.73
30
49.5
75
300
300
93 / 112
Ø 65 3.47/4.45 1.81/2.32 0.83/0.61 1.10/0.73
30
49.5
75

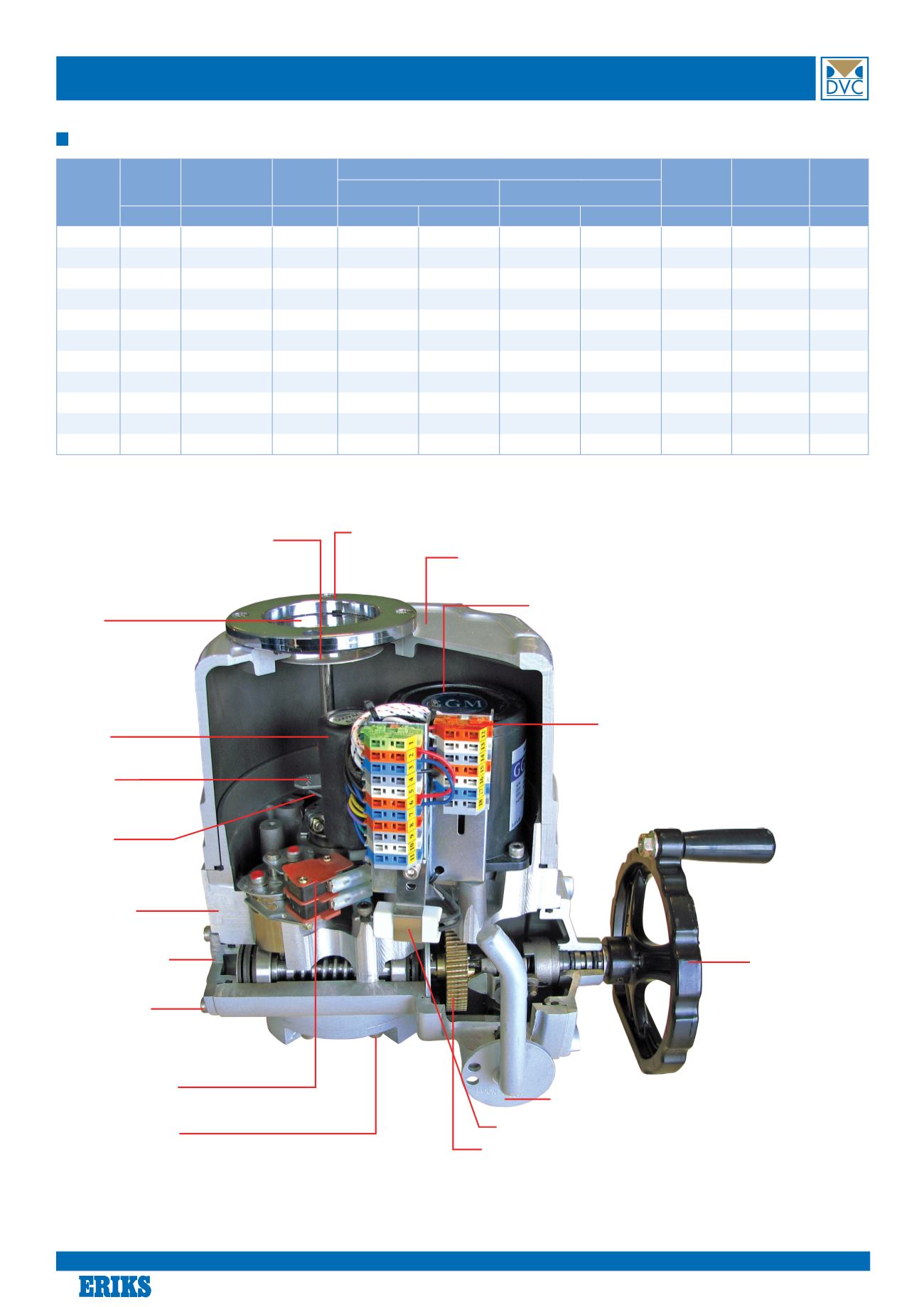

Performance 008 - 300
Performance
Two worm gear assembly
Self locking with minimum backlash in the transmission
Manual override
Heater and thermostat
Manual hand wheel
Capacitor
Terminal block
Motor - available in 1 phase / 3 phase, all motors are custom
built for high-torque, low current draw and the highest duty
cycle ratings offered. (S2: 30 min., S4: 70%)
Actuator cover - High corrosion resistance due to anodizing on the
inside and outside, polyester powder coating on the outside.
Window cover
Window
Position indicator
Option: illuminated red (close), yellow
(over torque), white (power)
Actuator body
Mechanical stoppers
(rear side)
Dual conduit
connection (rear)
Torque switch system
ex. 080 / 010
Easy mounting base
standards to ISO 5211
Open cam
Close cam
