B-5630-UK-06-2013-REV. A
An
Company

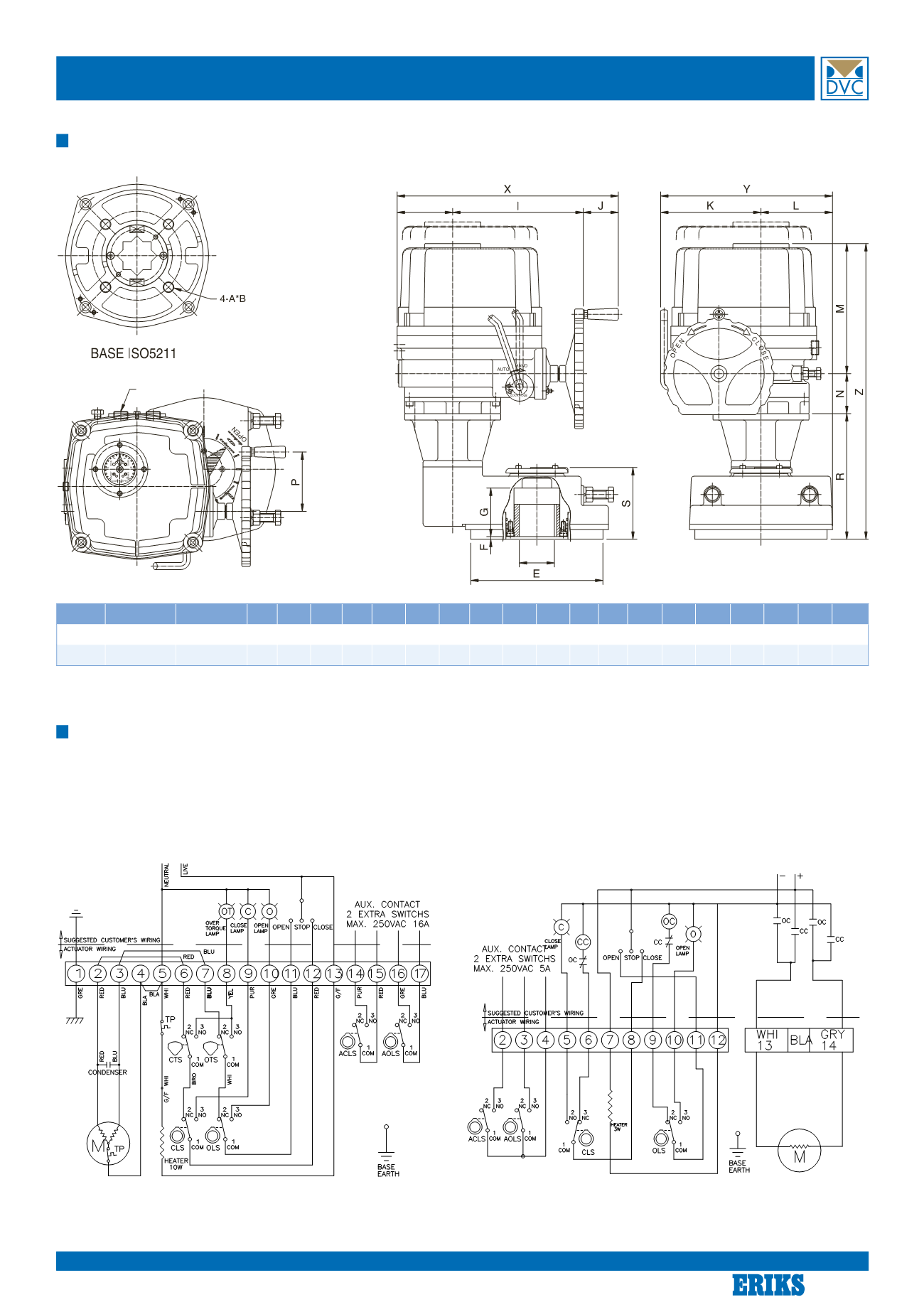

Wiring Diagram (015, 020, 030, 050, 060, 080, 120, 200, 300)
2 x M25
Dimensions - 200, 300
Type 5630 - 200, 300
Model ISO 5211 A øD E F G H I J K L M N O P Q R S X Y Z
200 F12 / F14 M16 / M20 65 245 5 90 103 242 65 186 133 256 74 78 110 210 233 133 410 319 563
300 F12 / F14 M16 / M20 65 245 5 90 103 242 65 186 133 256 74 78 110 210 233 133 410 319 563
HQ015...HQ030
DC (24V)
INCOMMING POWER
AC 1PH (230V)
Know-how makes the difference
7
