PCU - POSITIONER CONTROLED ELECTRICAL ACTUATOR
TYPE 5630 electrical actuator from Dansk Ventil Center, can be delivered with positioner control. Optional choice
from 0-10V or 4-20mA trouble free position of you valve. 0-10V or 4-20mA feed back are included as standard.
TYPE 5630-PCU combined with DVC V-notch ball valve will give you a high performance control valve at low cost.
Only Size
HQ006
has externally mounted positioner control board. From HQ008 and bigger, the PCU-control board
will be mounted inside the standard casing.
HQ-004 is currently not available with PCU.
212.4
148
126.4
147.5

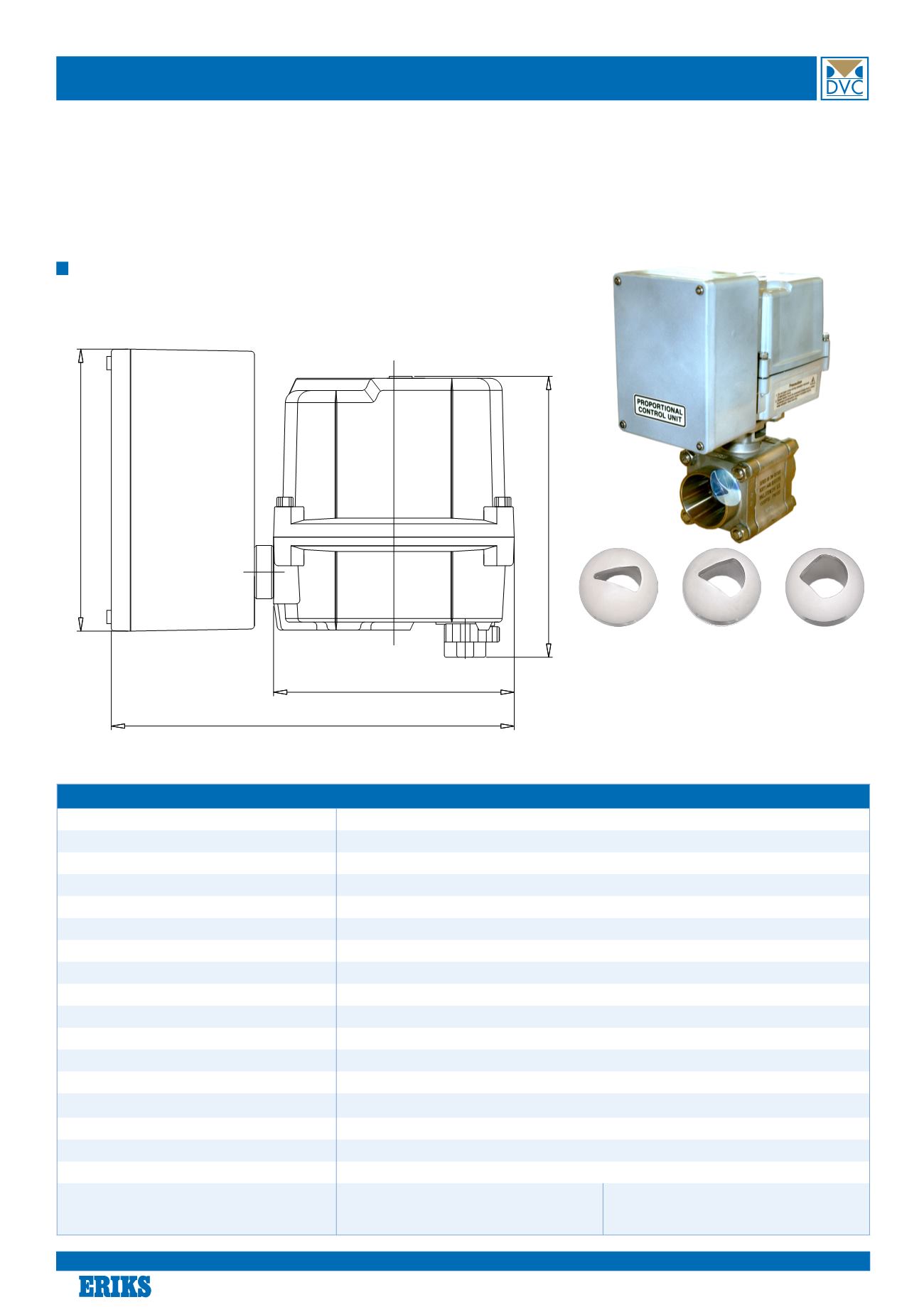

Dimensions - 006 with PCU
30
o
60
o
90
o
PCU - PROPORTIONAL CONTROL UNIT - STANDARD SPECIFICATIONS
POWER
85V~280V AC ±10% 50/60 Hz 4VA max.
INPUT SIGNAL
4-20mA DC, 2~10V DC, 0~5V DC, 0~10V DC, 1~5V DC
INPUT RESISTANCE
250 Ohm, Feed back signal: 100~10 Kohm
EXACTION
2.3V DC
OUTPUT SIGNAL
4~2-mA DC, 2~10V DC, 0~5V DC, 0~10V DC, 1~5V DC
LOAD RESISTANCE
750 Ohm max.
CONTROL OUTPUT
Relay contact 250VAC 10A MAX (Inductive load)
NUMBER OF OUTPUT CONTACTS
2 pcs. (OPEN and CLOSED contacts)
DELAY TIME ADJUSTMENT
0,5 ~ 7,5 sec (1 step 0.5 sec ~ 15step 7.5 sec)
DEAD BAND ADJUSTMENT
0,5 ~ 7,5 % (1 step 0.5 % ~ 15step 7.5 %)
RESOLUTION
Min. 1/1000
POSITION CONVERSATION ACCURACY
± 0.5 ~ ± 1.5% (depending on installation)
AMBIENT TEMPERATURE
-10
o
C ~ +70
o
C
AMBIENT HUMIDITY
90% RH Max (NON-CONDENSATE)
DIELECTRIC STRENGHT
1500V AC 1min (input to outpu, Power to ground)
INSULATION RESISTANCE
Min. 500VDC 30Mohm
VIBRATION AND SHOCK (X, Y, Z)
5G (Frequency: 0.2 ~ 34Hz, 30min)
LED SIGNAL
Blue ON: Power on (AUTO)
Blue Flicker: AUTO SETTING
Green On: Close
Red ON: Open
Yellow ON: Manual OPN. by card
Yellow Flicker: Fault
