B-5630-UK-06-2013-REV. A
An
Company

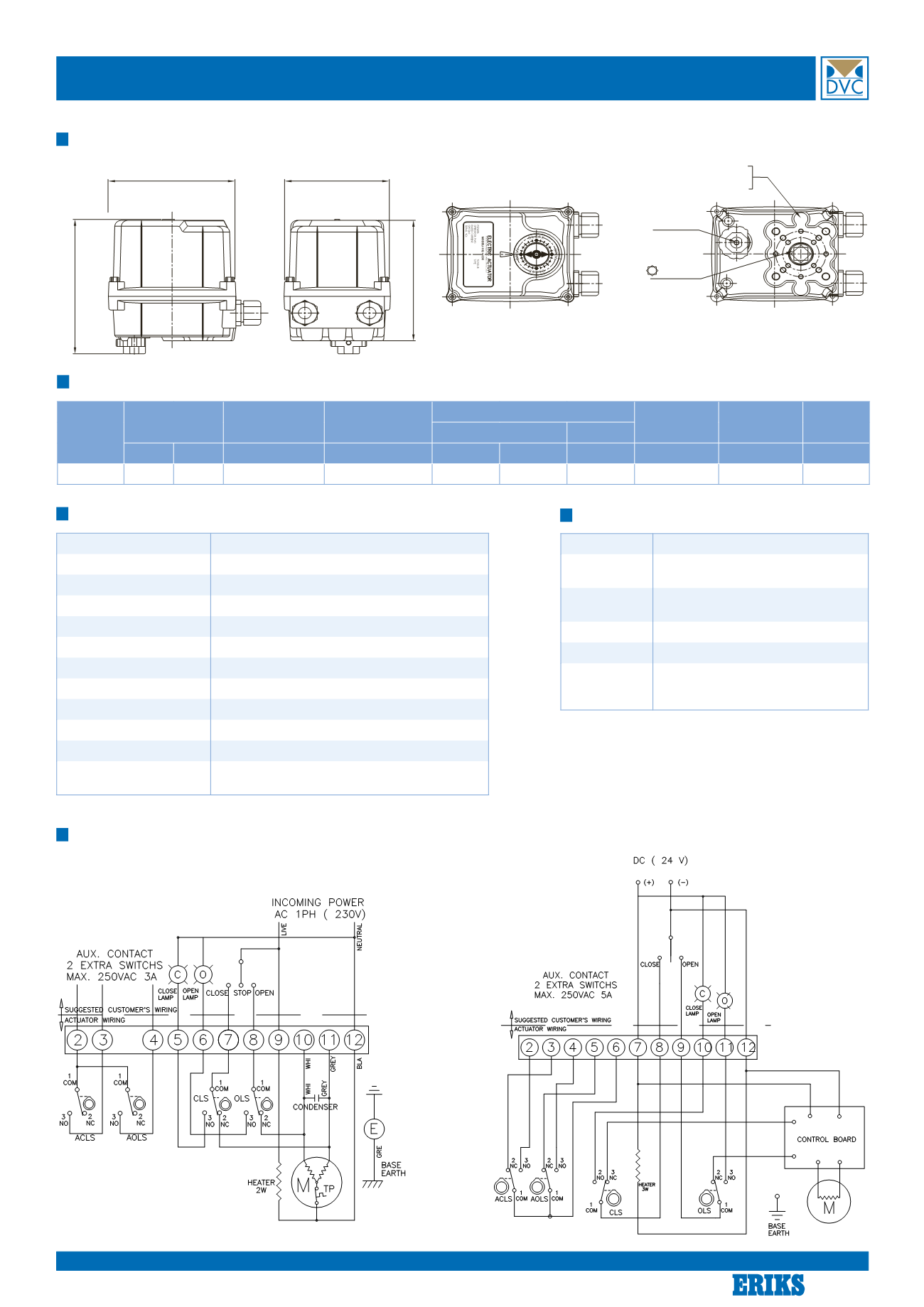

Type 5630 - 006
126
105
14mm
CABLE ENTRY: PG13.5
HAND WHEEL
ISO 5211 F03
F05
F07
231
731
Dimensions - 006
Enclosure
IP 67
Power supply
230V AC 1PH, 50 / 60 Hz, ± 10%
Duty cycle (on-off duty) S2, 30 min.
Travel
Reversible travel
Limit switches
Open / close, SPDT, 250V AC 10A rating
Additional limit switches Open / close, SPDT, 250V AC 10A rating
Space heater
2W (220V AC) Anti-condensation
Manual override
Hand wheel (hexagon design)
Cable entries
2 x M20 (option: NPT ½”, PT ½”, PF ½”)
Movement angle
90° standard
Ambient temperature
-20° C. - 70° C.
External coating
Anodizing treatment before dry powder, polyes-
ter, Munsell no. 5R 3.5/12
PIU
Potentiometer Unit (0 - 1 KΩ)
PCU
Proportional Control Unit
(in / out: 0 - 10V, 4 - 20 mA DC)
CPT
Current Position Transmitter
(Output 4 - 20 mA DC)
ADCM
Multi (24V AC / DC)
DCM
DC motor (24V DC)
LCU
Local Control Unit
- remote / local
- open / stop / close
Standard Specifications
Wiring Diagram
Optional Specifications
Performance - 006
Type
Max. output
torque
Operating
time 60/50 Hz Mounting size
Rated current (A) 60 Hz
Duty cycle
IEC 34-1
Number of
handle turn Weight
AC 1PH. 50/60HZ
DC
Kg.m N.m 90°
ISO 5211
110V 230V 24V S2(min)
N
Kg
006
6
58
12 / 14 sec.
F03 / F05 / F07 0.4 / 0.39 0.2 / 0.19 0.2
30
8
3
Know-how makes the difference
5
