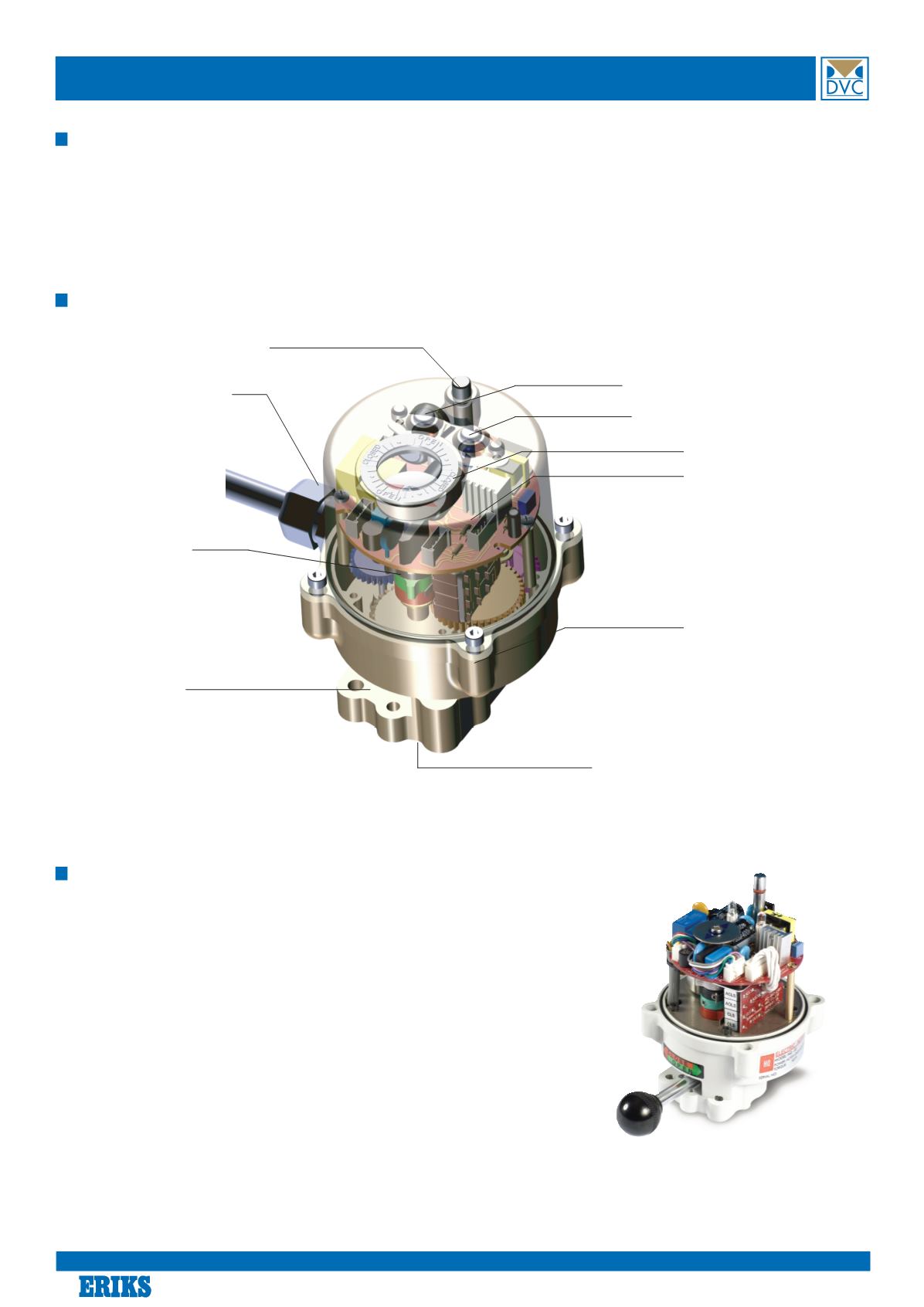

Type 5630 - 004
Description - 004
Features - 004
Construction - 004
The 004 electrical actuator from DVC International is specially designed for small size quarter turn valve operation
such as ball valves, butterfly valves, plug valves, dampers and similar usages.
• Compact and light weight
• High corrosion resistance
• Multi-voltage (AC85~265V / 1PH, 24V DC)
• Standard space heater (0.5W)
• Weather proof IP67
• Push button and manual lever
• Mounting base - standard ISO 5211 (F03, F04, F05)
• Standard 4 limit switches
• Captive cover bolts
• Mechanical position indicator
- and LED lamp indicators (open / close)
• Lead type cable wires.
Auto / manual push button
Full close lamp (blue)
Full open lamp (red)
Indicator
Main board
4 x captive bolt
Mounting base (ISO 5211)
F03, F04, F05
Manual lever
connection hole
4 x limit switch
Add CLOSE L/M S/W (white)
Add OPEN L/M S/W (black)
CLOSE L/M S/W (green)
OPEN L/M S/W (red)
Cable entry and wire
Long wire type (10p)
M20 Cable plug
Standard wire length: 1.2 m
