B-2232-UK-10-2013-REV. A

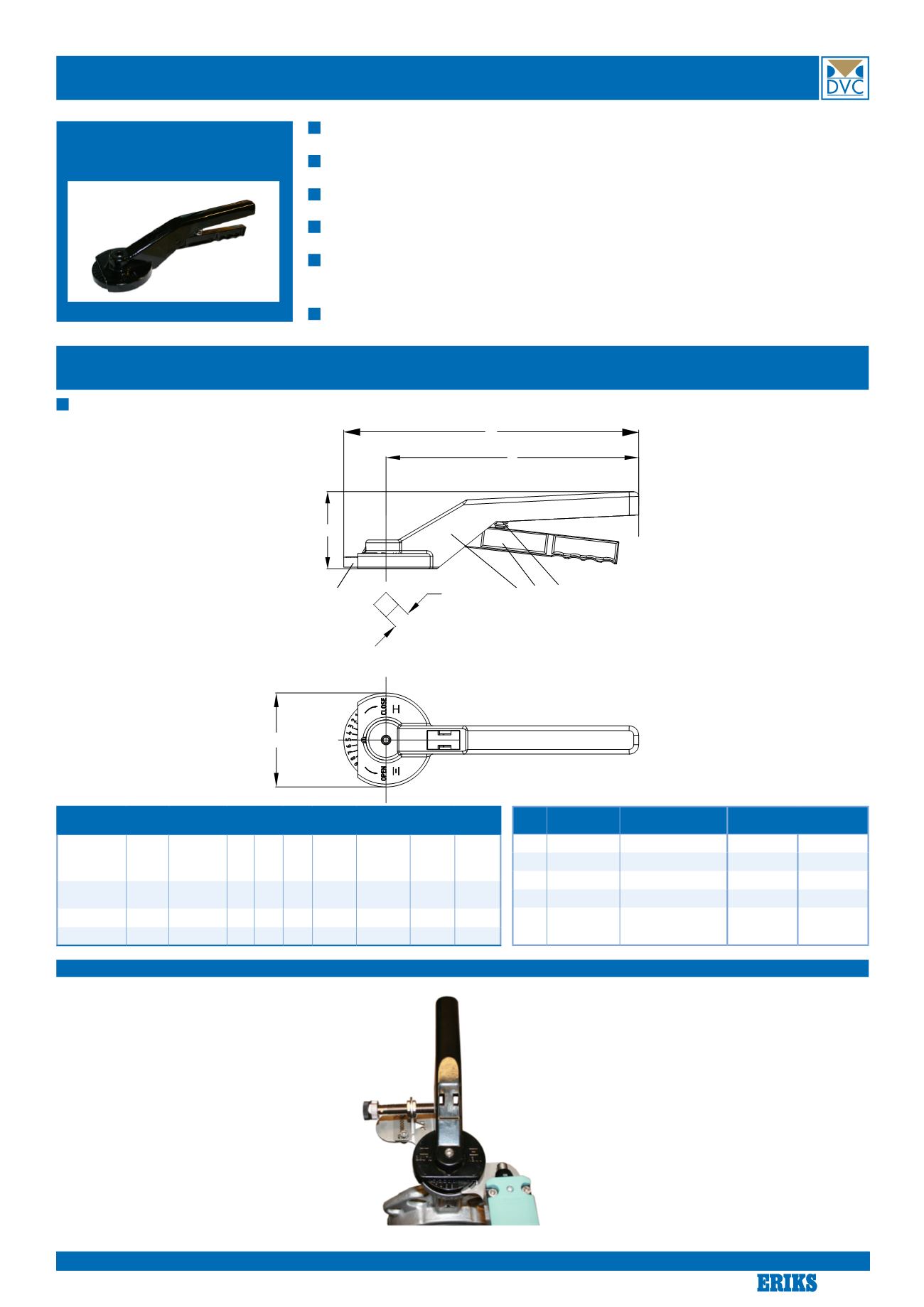

Hand lever
For DN40 to DN200 Alu.
Stainless steel hand lever on request
For DN40 to DN200 Aluminium
Construction - Hand lever
Dimensions (mm) and materials
No.
Part Name
Aluminium
Surface
standard option
1 Column
Diecast aluminum Powder epoxy Anodized 40µ
2 Holding Handle Diecast aluminum Powder epoxy Anodized 40µ
3 Locking Handle Diecast aluminum Powder epoxy Anodized 40µ
4 Spring
Carbon Steel Q235
Steel Q235
SS316
5 Bolt / nut
SS304
SS304
SS316
Aluminium hand lever
Convenient installation and usage.
Excellent surface design and comfortable operating.
Position can be locked by fixing one bolt and nut in the lever hole.
Standard anodized surface with powder epoxy coating.
ExE
B
D
C
F
1
2 3 4
Type Alu Valve
dim.
Size
B C D ExE
F
Bolts Weight
(Kg)
2953100050
DN40
DN50
DN65
DN80
F05
195 228 73 11 x 11
60
M6 x 20 0.35
2953100125
DN100
DN125
F07
269 317 101 14 x 14
80
M8 x 25 0.60
2953100150
DN150
F07
269 317 101 17 x 17
80
M8 x 25 0.60
2953100200
DN200
F10
330 405 125 22 x 22
82
M10 x 30
0.80
DVC are able to offer other solutions on request...please ask for an offer
Mounting bracket for
inductive switch
ø12mm or ø18mm
Signal for OPEN or Closed
Mounting bracket for
mechanical switch
Signal for OPEN or CLOSED
Know-how makes the difference
