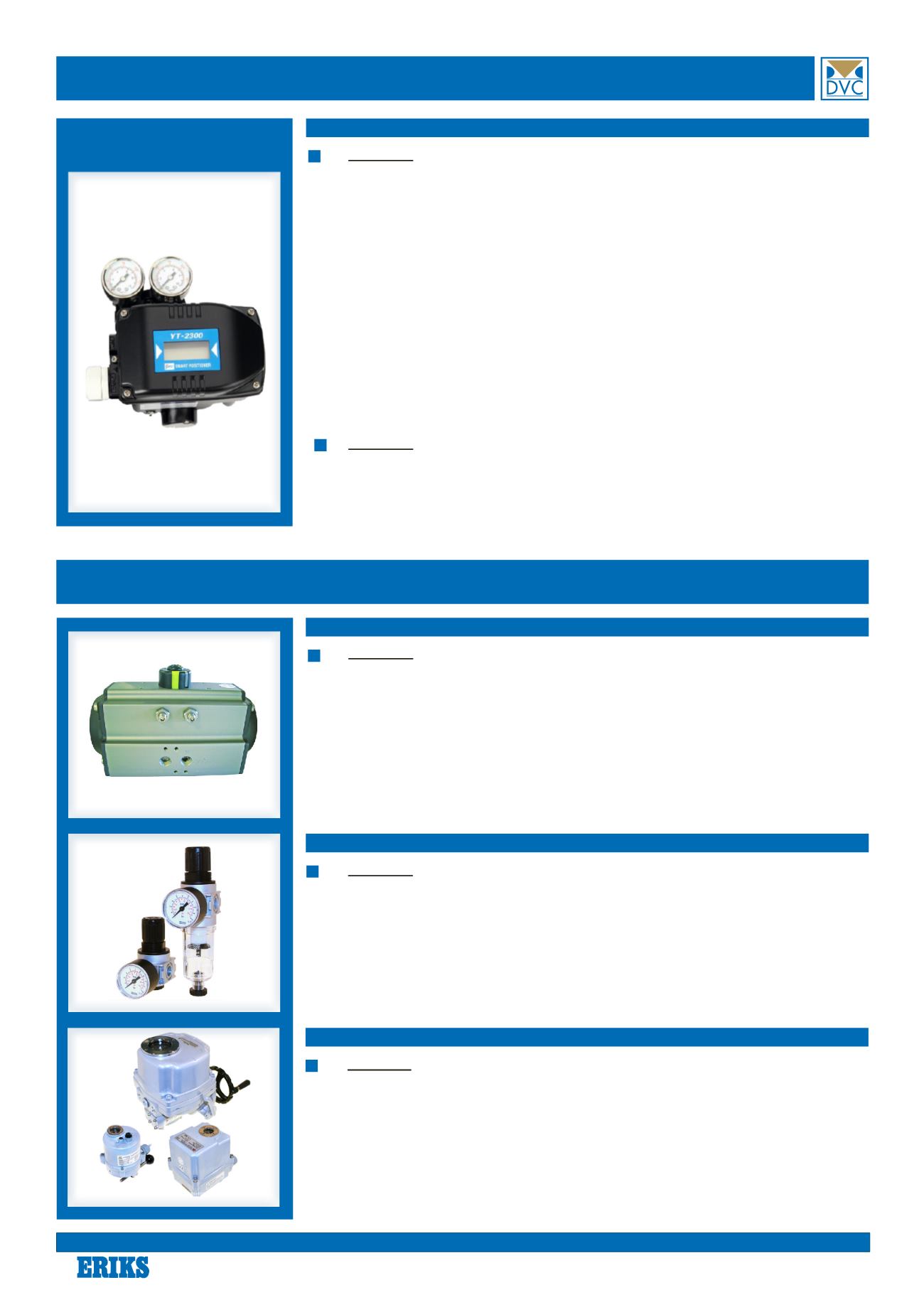

YT-2300
Specifications
GENERAL
Setpoint signal:
0/4 - 20 mA
Supply pressure:
1.4 to 7 bar
Travel range:
3 - 150 mm (standard)
Impedance:
Max 460Ohm /20mA DC
Repeatability
+/- 0.3% F.S.
Ambient temp. operating
-30
o
C to 85
o
C
Ambient temp. Eex
-40
o
C to 60
o
C
Linearity:
+/- 0.5% F.S.
Hysteresis:
+/- 0.5% F.S.
Sensitivity:
+/- 0.2% F.S.
Air consumption:
Max 2L/min.
Flow capacity:
70L/min.
Output Characteristics
Linear, EQ%, Quick open (user set)
Material:
Dicast aluminium
Protection:
IP66
OPTIONS
Explosion proof type
Ex ia IIC T6/T5
HART
Filter regulator
ELECTRO PNEUMATIC VALVE POSITIONERS
ACCESSORIES / OPTIONS
PNEUMATIC ACTUATOR DOUBLE ACTING OR SPRING RETURN TYPE 505
GENERAL
Torque double acting:
14 to 3.500 Nm at 6 bar
Torque spring return:
14 to 1.620 Nm at 6bar
Rotation angle:
0° to 90°. Adjustable +5° to -5°
Pressure:
2 to 10 bar
Temperature:
-20° C. to +80° C.
Work media:
Air (PNEUROP/ISO Class 4)
Connections:
ISO 5211 for brackets
DIN 3337 coupling (star shaped)
VDI/VDE 3845 for accessories
NAMUR for work media
FILTER REGULATOR TYPE 5401
GENERAL
Material:
Zink - Z 410 / Polycabonat.
Supply pressure:
1,5 - 16bar
Reduced pressure:
0,2-6Bar
Temperature:
+5
°
C / +60
°
C
Filter element:
5µm
Drain:
Semi automatic (HA4)
Port size:
1/4” BSPP
Pressure gauge:
0-6bar
ELECTRICAL ACTUATOR WITH PCU - POSITIONER TYPE 5630
GENEREL
Material:
Aluminium, polyester powder coated.
Power supply:
230V/50Hz AC; 24V AC/DC; 400V 3-Phase
Positioner:
4 - 20mA input/output
Enclosure:
IP67
Temperature:
-20
°
C / +70
°
C
Travel angle:
90
°
Torque:
60 - 3000Nm
Duty range:
S4 70% Max. 300-1600 start/hour
