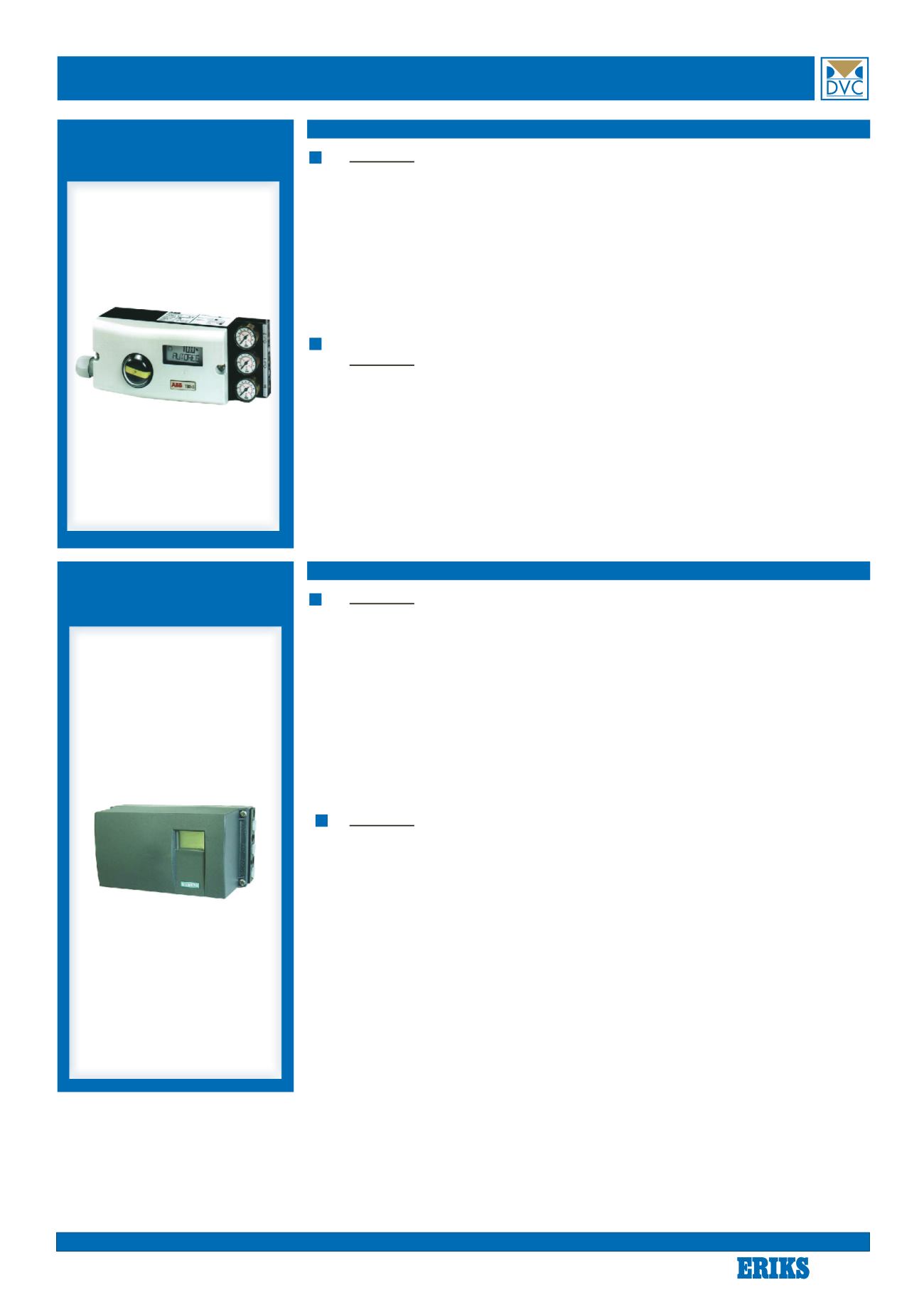

ELECTRO PNEUMATIC VALVE POSITIONERS
ABB TZID-C
TYPE 5400
Specifications
GENERAL
Input signal:
4 - 20 mA, two-wire technology with choice
of HART signal or PROFIBUS PA protocol
Stroke range:
10 - 90 mm resp. 25-120°
Supply air:
1.4 - 6 bar (20-90 psi)
Control accuracy:
≤0.5%
Ambient temperature:
-40° C to +85° C.
Housing:
Aluminium coated, IP65
Vibration immunity:
10 g at 20-80Hz
Burden voltage:
8.7 V DC (none Ex)
9.7 V DC (Ex intrinsically safe)
OPTIONS
Ex protection:
EEx ib II C T6
Plug-in modules for:
Analog position feedback signal
Digital position feedback signal
for min./max. position
Safety shutdown module.
Kit for:
Mechanical position indicator
Digital position feedback for
min./max. position with 2
slot-type initiators or micro switch
Accessories:
Pressure gauge block
Filter regulator
SIEMENS SIPART PS2
Specifications
GENERAL
Setpoint signal:
0/4 - 20 mA with choice of HART
signal or PROFIBUS PA protocol
Travel range:
3 - 130 mm (standard)
Slewing angle:
30
°
- 100
°
(standard)
Auxiliary power:
- pneumatic
1.4 to 7 bar
- electrical
4-20 mA (two-wire circuit) or
18-30 V (four-wire circuit) or
bus-powered 10.5 mA with
PROFIBUS PA
Ambient temperature:
-30
°
C to +80
°
C
OPTIONS
(can be retrofitted)
Binary inputs:
Floating contacts or 24 V
Explosion protection:
ll 2G EEx ia/ib ll C T6
or ll 2G EEx d ll C T6
or ll 3G EEx n A L [L]llC T6
Other approvals:
FM (Factory mutual)
CSA
Additional modules on request
Alarm outputs/fault message output
(with slot-type initiators if required)
Mounting kits
Pressure gauge block
Solenoid valve block
Position feedback module, 4-20 mA
External position sensor
Also non-contact
