Know-how makes the difference

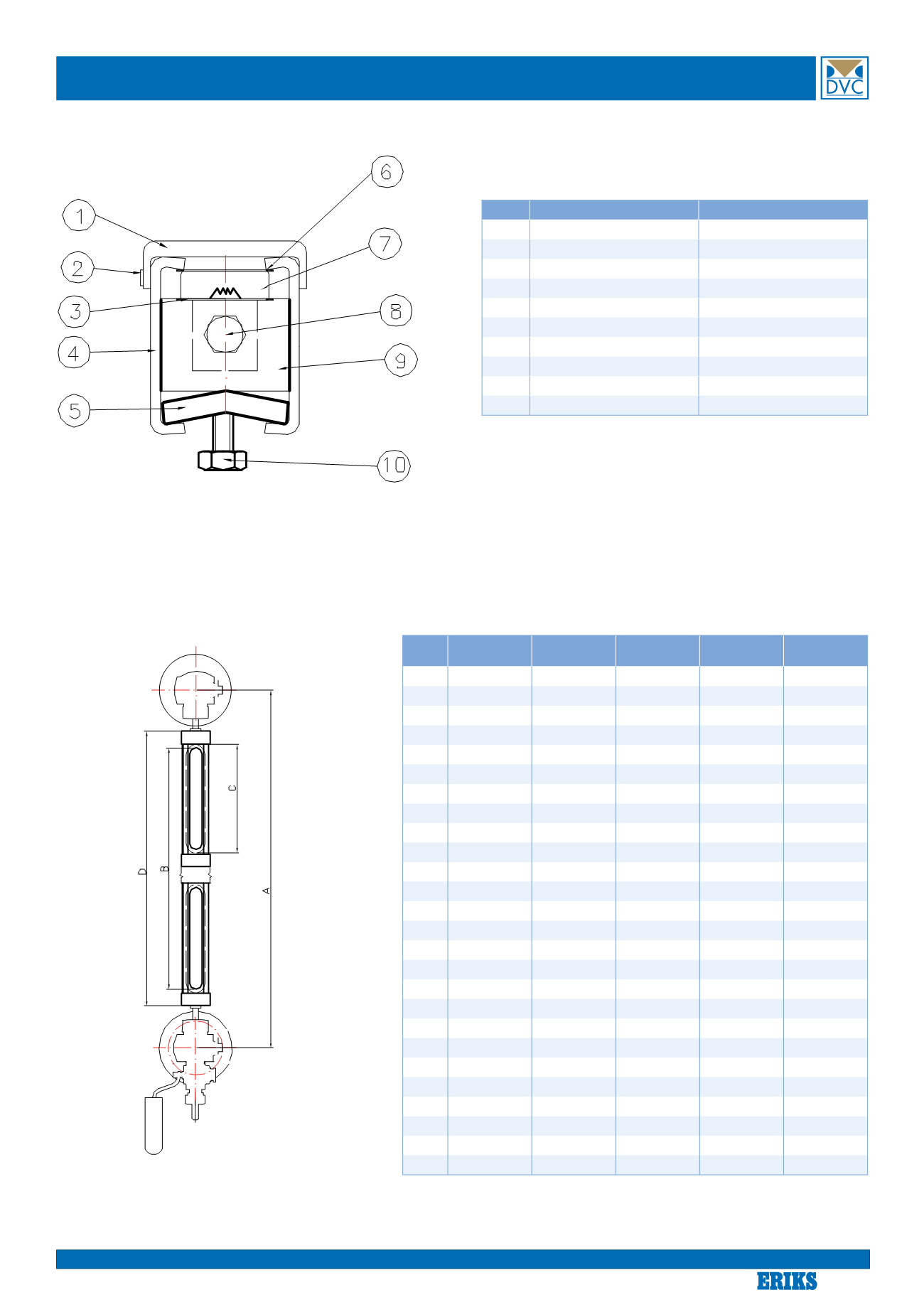

Type 9040 Reflex Level Gauge
Materials
Size
A [mm]
Standard
A [mm]
Minimum B [mm]
C [mm]
D [mm]
1 x 3
285
285
143
165
180
1 x 4
310
310
168
190
205
1 x 5
350
340
198
220
235
1 x 6
370
370
228
250
265
1 x 7
400
400
258
280
295
1 x 8
500
440
298
320
335
1 x 9
525
460
318
340
360
2 x 4
525
515
373
190
410
2 x 5
575
575
433
220
470
2 x 6
700
635
493
250
530
2 x 7
760
695
553
280
590
2 x 8
800
775
633
320
670
2 x 9
875
815
673
340
710
3 x 6
950
900
758
250
795
3 x 7
1050
990
848
280
885
3 x 8
1175
1110
968
320
1005
3 x 9
1200
1170
1028
340
1065
4 x 7
1300
1285
1143
280
1180
4 x 8
1450
1445
1303
320
1340
4 x 9
1590
1525
1383
340
1420
5 x 7
1580
1580
1438
280
1475
5 x 8
1800
1780
1638
320
1675
5 x 9
1880
1880
1738
340
1775
6 x 8
2115
2115
1973
320
2010
6 x 9
2235
2235
2093
340
2130
7 x 9
2590
2590
2448
340
2485
Pos
Description
Material
1 Clip
Carbon Steel #25
2 Phillips Screw
Steel
3 Gasket *
Graphite
4 U-profile
Carbon Steel #25
5 V-profile
Carbon Steel #25
6 Gasket *
Graphite
7 Glass *
Borosilicate Glass DIN 7081
8 Pipe Connection
1Cr18Ni9Ti
9 Body
Carbon Steel 20NM
10 Bolt
Steel
* Included in the spare part kit.
Dimensions
