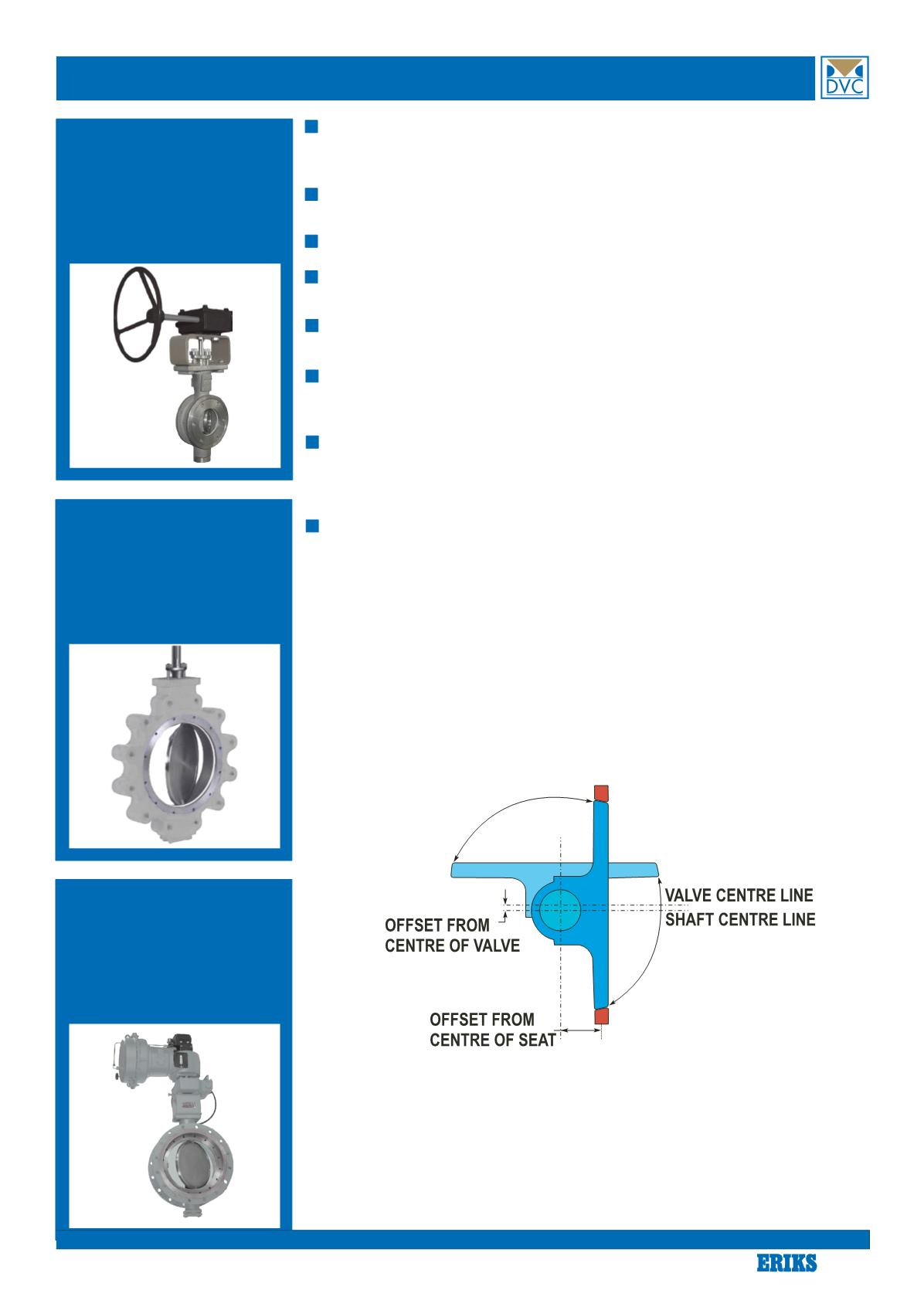

Double Eccentric
Butterfly Valve
Type 2530 Wafer
Dimensions
DN50 - DN600
The 25xx series of Double Eccentric Butterfly Valves from Dansk Ventil Center
is a range of high performance, heavy-duty constructed butterfly valves avail-
able in Wafer, LUG or Double Flange executions.
The seat constructions with its Double Offset provides excellent controllabil-
ity, bubble tight shutoff, longer seat life as well as a smooth operation.
Product Range and Benefits
Double Eccentric
Butterfly Valve
Type 2550 Double Flanged
Dimensions
DN50 - DN600
Double Eccentric
Butterfly Valve
Type 2540 LUG
Dimensions
DN50 - DN600
Valve body is heavy duty.
Optimal disc geometry and cavity free flow passage offers minimum flow re-
sistance and high Cv values.
Heavy duty pins connecting valve shaft to disc avoids lost motion under high
torque conditions.
Long life, easy field replaceable seat placed in body, away from flow stream,
provides bubble tight shut off. Valves are equally suitable for control and tight
shut off applications.
Low friction bearings provide maximum radial support for higher shaft loads.
The PTFE lined bearings having low co-efficient of friction minimizes operat-
ing torque and reduces actuator size. They are slip-in place type, easy for
assemble and disassembly.
Seat option includes Reinforced PTFE (15% Glass Fiber/12% Carbon/3%
Graphite), EPDM, NBR, FPM soft seats and Flexible Metal Seats to suit a vari-
ety of fluids and applications.
Working principle of the Double Excentric construction
3
B-2530-UK-06-2013-REV. A
